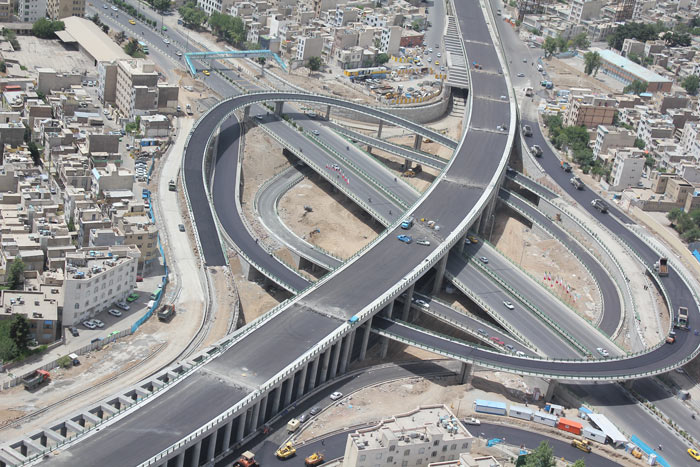

MAHALLATI MULTI LEVEL INTERCHANGE
Client
MUNICIPALITY OF TEHRAN
Location
TEHRAN, IRAN
Technical Information

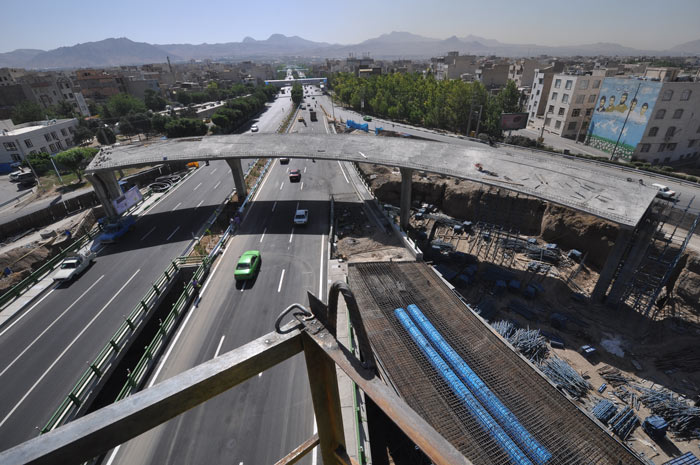

Design and supervision of the multi level interchange with full turning
movements includes:

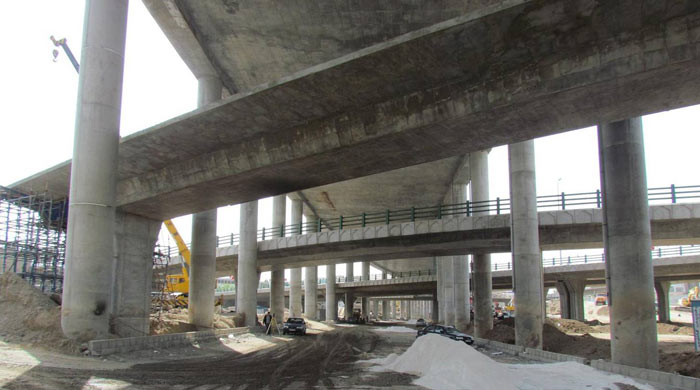

- 9800 m² reinforced and prestressed concrete voided slab as main bridges (2 bridges)

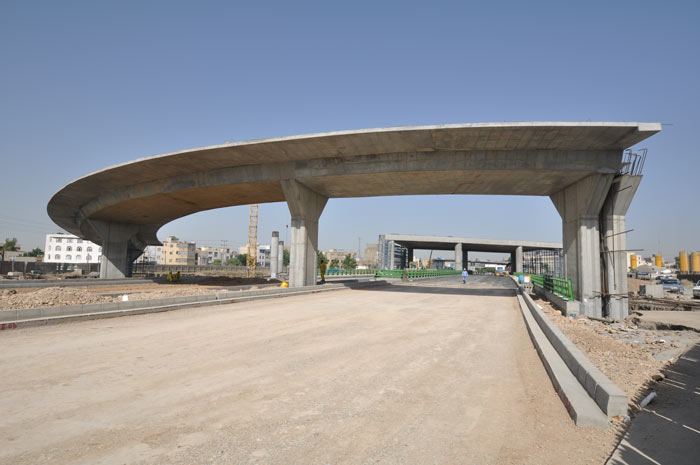

- 6700 m² reinforced and prestressed concrete voided slab as directional bridges (4 bridges)
- Length of main bridges: 415 m (244+171)
- Maximum length of span in main bridges: 32 m
- Number of spans in main bridges: 25 (17+8)
- Length of directional bridges: 725 m (302+82+105+236)
- Maximum length of span in directional bridges: 33 m
- Number of spans in directional bridges: 32 (14+4+5+9)
- Underpassing a subway line from depth 18 m of the main bridges
Duration
2008 - 2013
